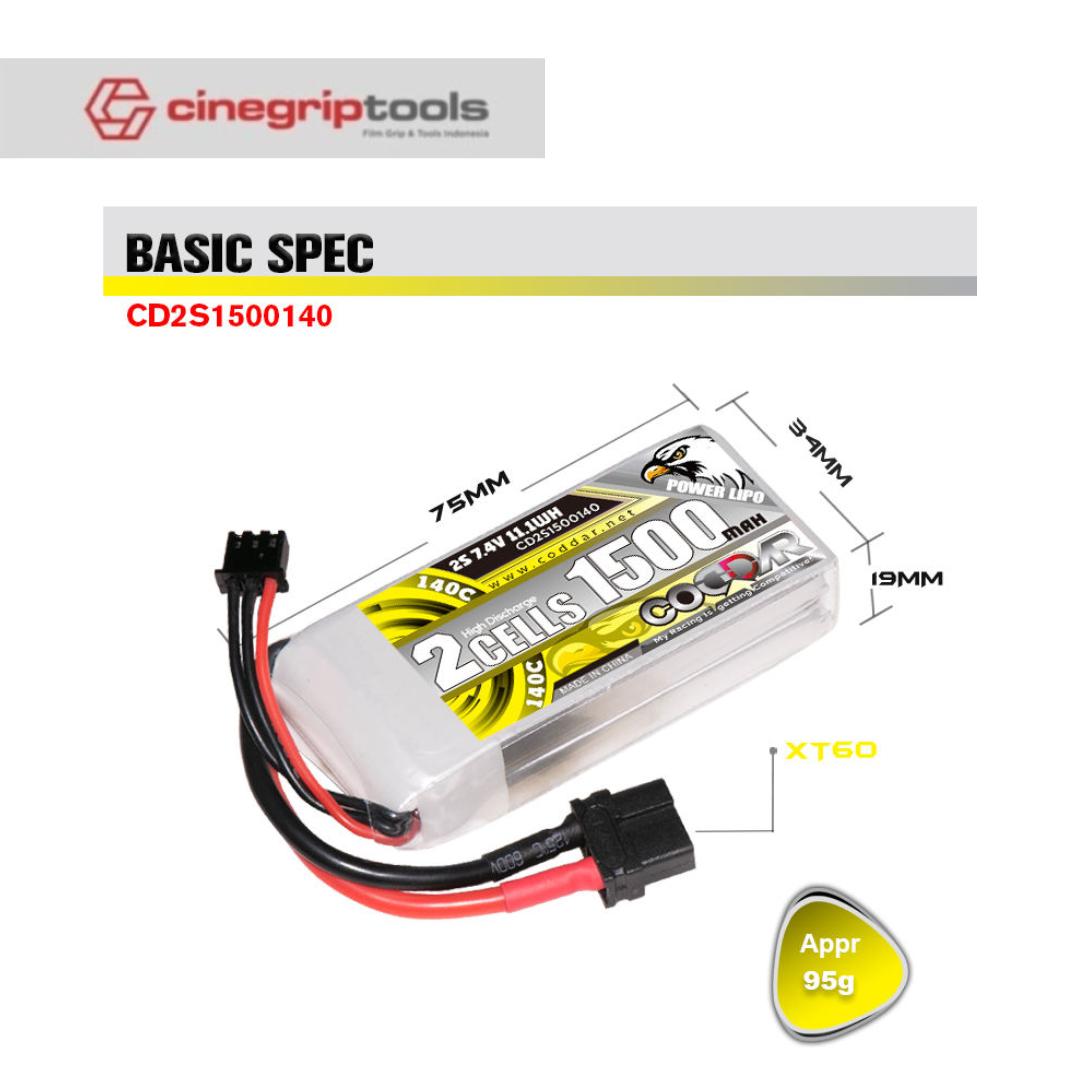

CODDAR 2S 1500MAH 7.4V 140C LiPo Battery XT60

Key Specifications

• Type: Lithium Polymer (LiPo) Battery
• Brand: CODDAR
• Model Number: CD2S1500140
• Nominal Voltage: 7.4V
• Nominal Capacity: 1500mAh
• Cell Configuration: 2S1P (2 cells)
• Continuous Discharge Rate: 140C
• Peak Discharge Rate: 280C (for 3 seconds)
• Dimensions: 75(L) x 34(W) x 19(H) mm
• Weight: 95g (+/-2g)
• Discharge Connector: XT60
• Charge Connector: XH-JST 3 pin

Applications

This battery is typically used in applications requiring high discharge rates, such as:

• FPV Racing Drones
• Remote-controlled toys
• RC Boats
• Small electric vehicles
