Description

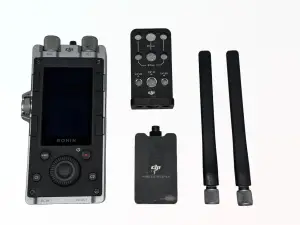

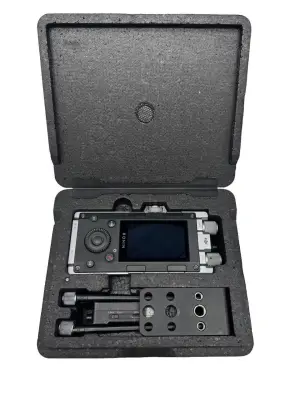

The DJI Force Pro is a compact controller that lets you wirelessly control select gimbals from up to 1.8 miles away. It's compatible with the DJI Ronin-S gimbal, and compatibility with the Ronin-2 is expected in a future firmware update.

It also works with select 3rd-party gimbals via an SBus connection. The Force Pro can be used handheld or mounted on gimbal handlebars or a tripod plate. It runs for up to five hours on a built-in battery and lets you pan, tilt, and adjust 3-axis speed. Operating over the 2.4 and 5.8 GHz frequencies, it performs with only 10 ms of latency, allowing you to be in near real-time sync with your gimbal. It also supports a more secure wired connection over an optional cable up to 98' in length.

Product Highlights

Wireless Long-Range Gimbal Controller
Compatible with DJI Ronin 2 and Ronin-S
Supports 3rd-Party Gimbals via SBUS
1.8 Mile Distance; 10 ms Latency
98' Wired Distance
Adjust 3-Axis Speed
2.4 and 5.8 GHz Dual Frequency
Up to 5-Hour Operation
Adapter for Mounting on Various Supports

Specifications

Compatibility• DJI Ronin 2
• Ronin-S
• MoviPro
• third-party gimbals with SBUS connectionTransmission1.8 miles / 3 Km (wireless), 98' / 30 m (wired)Latency10 msWireless Frequency2.4 and 5.8 GHz dual frequencyMounting1/4"-20 mounting threadOperating Temperature-20° to 40°C / -4° to 104°FCharging Temperature0° to 35°C / 32° to 95°FOperating Current0.16 APower Consumption3WVoltage3.85 VDC In9-26 VDC Out5 V / 1 ABatteryBattery Type
• 1 x Built-In

Capacity (mAh)
• 4750 mAh
Capacity (Wh)
• 18.21 Wh
Battery Runtime
• 5-hours
Battery Charge Time
• 2.5-hours
Battery Chemistry
• Lithium-IonPorts1 x USB
