OSEE Mega 22S same like SWIT K21 - 21.5" HDR Production Monitor | 1500nits Camera Field Monitor for Studio & Live Broadcast | Waveform, Peaking & HDMI/SDI I/O

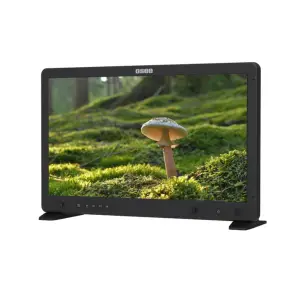

OSEE Mega 22S Overview

Bright, Clear Monitoring in the Field

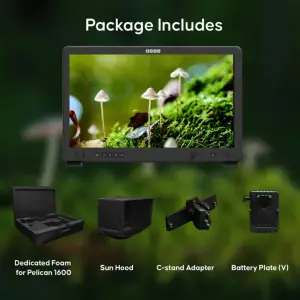

The OSEE 21.5" Mega 22S Production Monitor with V-Mount Plate Kit is a bright, 1500 cd/m² monitor featuring an IPS panel with 10-bit color, 3D LUT application, and HLG/PQ HDR for crisp, clear imaging for video resolutions up to DCI 4K30. A slew of monitoring tools includes focus peaking, histogram, waveform, false color, zebra, and aspect ratio options. The Mega 22S also supports anamorphic de-squeeze, plus timecode and audio metering for SDI. The monitor includes a V-mount battery plate, sun hood, C-stand mount, and desktop feet.

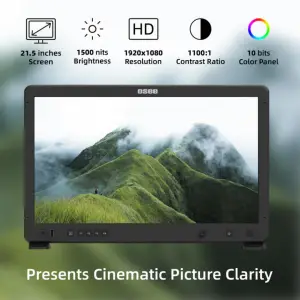

High-Bright Display

With a high 1500 cd/m² brightness level, this OSEE monitor is daylight viewable and includes a sun hood for blocking extraneous light when desired.

IPS LED Panel

The 10-bit color IPS LED panel produces greater depth, enabling you to display your images with precisely the tones you've created.

Multiple Video Inputs/Outputs

One HDMI input supports up to DCI 4K30.

Two 3G-SDI inputs and outputs support up to 2K50 and 1080p60.

Imaging Tools

Focus Assist, Focus Peaking

False Color, Zebra

Histogram, Vectorscope

Waveform, Anamorphic De-Squeeze

Custom Aspect Ratios

Frame and Center Markers

Crosshatching

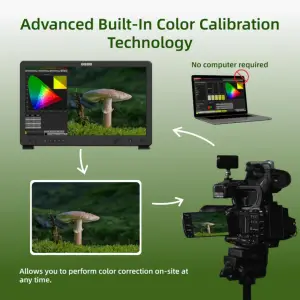

Built-In and Custom 3D LUT Support

The Mega 22S monitor can not only store up to 10 custom LUTs, but it also provides multiple logs, including ones for ARRI, Blackmagic Design, Canon, FUJIFILM, Panasonic, and Sony cameras.

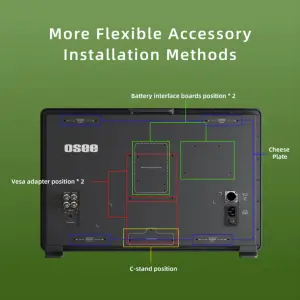

Versatile Power Options

Power this 21.5" monitor using the included plate and a V-mount battery, via the 4-pin XLR power input, or via AC power.

SDI Audio and Timecode

Monitor your embedded audio and use timecode on the SDI video ports.

Display Size

21.5" / 54.6 cm

Native Resolution

1920 x 1080

Touchscreen (No)

HDR Support (Yes)

Video I/O

2 x BNC (3G-SDI) Input

2 x BNC (3G-SDI) Output

1 x HDMI 1.4 Input

Media/Memory Card Slot (No)

Video Format

HDMI

DCI 4K: 30/29.97/25/24/23.98

UHD 4K: 30/29.97/25/24/23.98

DCI 2K: 50/25/24/23.98

DCI 2K PsF: 30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50

1080PsF: 30/29.97/25/24/23.98

720p: 60/59.94/50/30/29.97/25/24/23.98

SDI

DCI 2K: 60/59.94/50/30/29.97/25/24/23.98

DCI 2K PsF: 30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50

1080PsF: 30/29.97/25/24/23.98

720p: 60/59.94/50

Battery

1x V-Mount on Included, Interchangeable Plate

Power Consumption

45.4 W (Typical)

50.7 W (Maximum)
