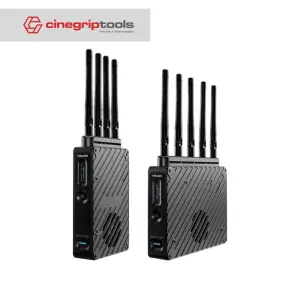

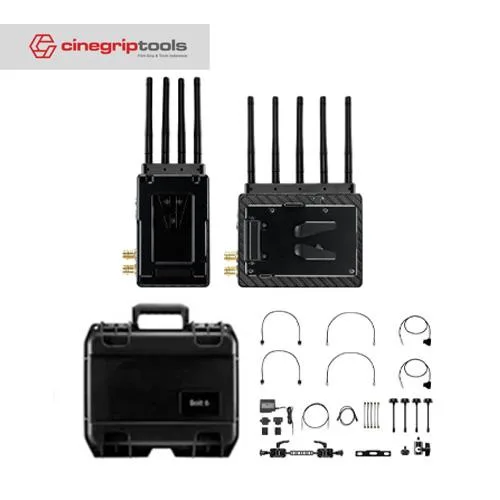

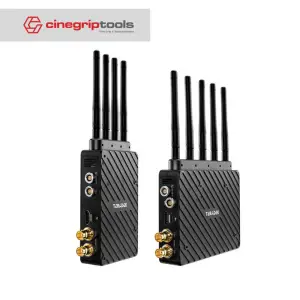

Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless TX/RX Deluxe Set V-Mount

Key Features
Supports New 6 GHz Frequency Band
Transmit Video up to 1500' Line-of-Sight
HDMI and 12G-SDI Inputs and Outputs
Transmit up to 4K30 Video

Antenna I/O Transmitter: 4 x RP-SMA Female
Receiver: 5 x RP-SMA Female
Video I/O Transmitter: 1 x HDMI 2.0 Input
Transmitter: 1 x BNC (12G-SDI) Input
Transmitter: 1 x BNC (12G-SDI) Loop Output
Receiver: 1 x HDMI 2.0 Output
Receiver: 1 x BNC (12G-SDI) Output
Embedded Audio SDI: 2-Channel
HDMI: 2-Channel
Audio I/O None
Power Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O Transmitter/Receiver: 1 x USB-C Input
Encryption 256-Bit AES
Wireless
Wireless Range 1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth 40 MHz, 20 MHz
Frequency Range Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power 23 dBm
Wi-Fi None
Bluetooth Yes
Format Support
Video Format HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98

Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression Uncompressed
Timecode Support Yes
Power
DC Input Power 28 VDC
Battery Type Receiver: 1 x V-Mount
Power Consumption Transmitter: 20 W
Receiver: 18 W
Mounting
Mounting 1 x 1/4"-20 Female
1 x 3/8"-16 Female
Environmental
Environmental Protection None
Operating Temperature 32 to 72°F / 0 to 40°C
General
Material of Construction Aluminum
Dimensions Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm
Receiver: 5.4 x 4.4 x 1.1" / 138 x 112 x 27 mm
Weight Transmitter: 12.1 oz / 344 g
Receiver: 15.2 oz / 430 g
