9.Solutions CHEESE PLATE, MISCELLANEOUS ACCESSORIES 9.VB5115

SKU 9.VB5115

Rp 700.000

Tanya Produk via WhatsApp

Harga, ketersediaan, dan ongkos kirim dikonfirmasi melalui konsultasi sebelum pemesanan.

Deskripsi

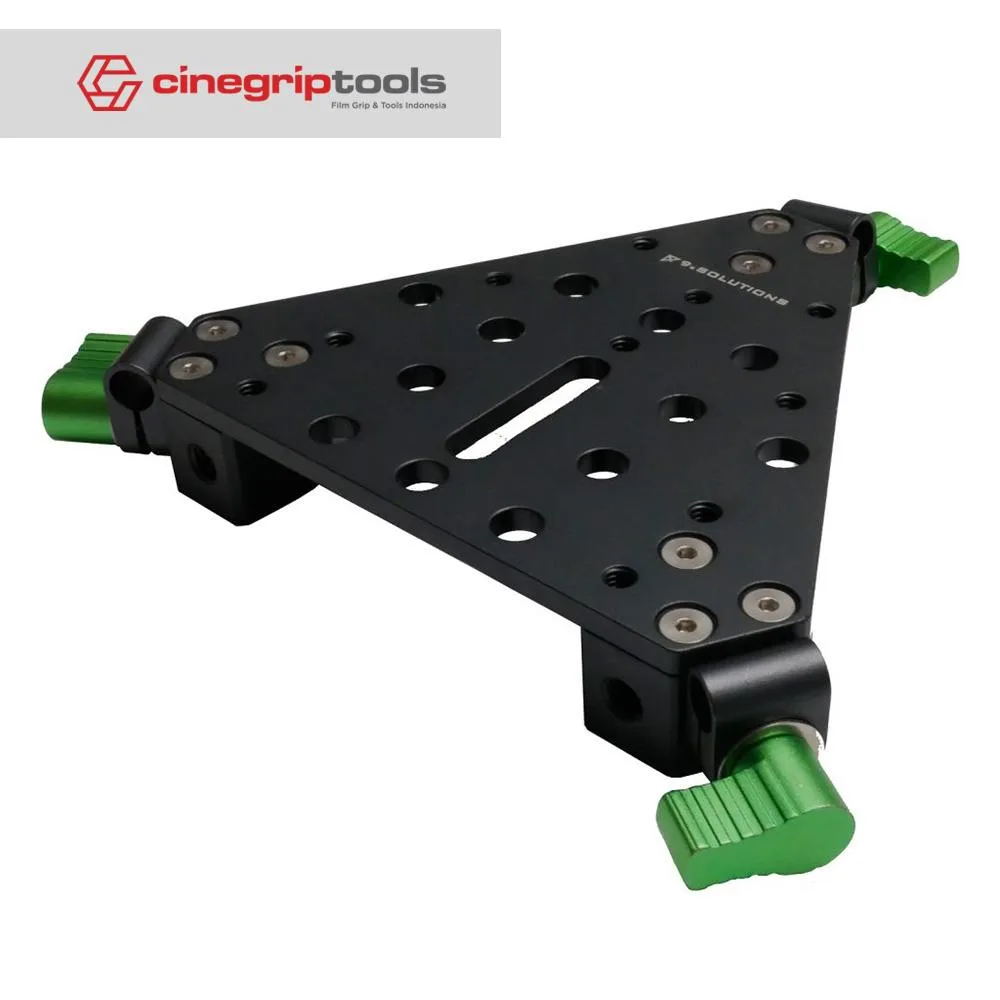

The multi purpose 9.Solutions Cheese plate differentiates itself from most other cheese plates by offering the possibility to build your rigging out from its side tapped mounting blocks.

Each of its three corner positioned blocks are tapped with 3/8”-16 side and bottom holes.

It also features an elongated 10x36mm center slot for accurate positioning of ball heads.

All 10mm through plate holes and four of the 1/4”-20 tapped holes are spaced with the industry standard 1 inch center distances.

The three included 3/8” rod clamps can be repositioned in any 3/8” tapped hole.

Specifications
Part Number – 9.VB5115

Weight: 4480 Grams
Color: Gray
Connection possibilities:
Top Plate
(1x) 10x36mm elongated slot
(12x) 3/8” (10mm) through holes (each 10mm top plate hole is spaced with 1 inch centers)
(10x) 1/4”-20 tapped holes

Each corner block
Three side 3/8”-16 tapped holes and (1x) underside 3/8”-16 tapped hole
Included: (3x) 3/8”-16 multi-placement rod clamps
